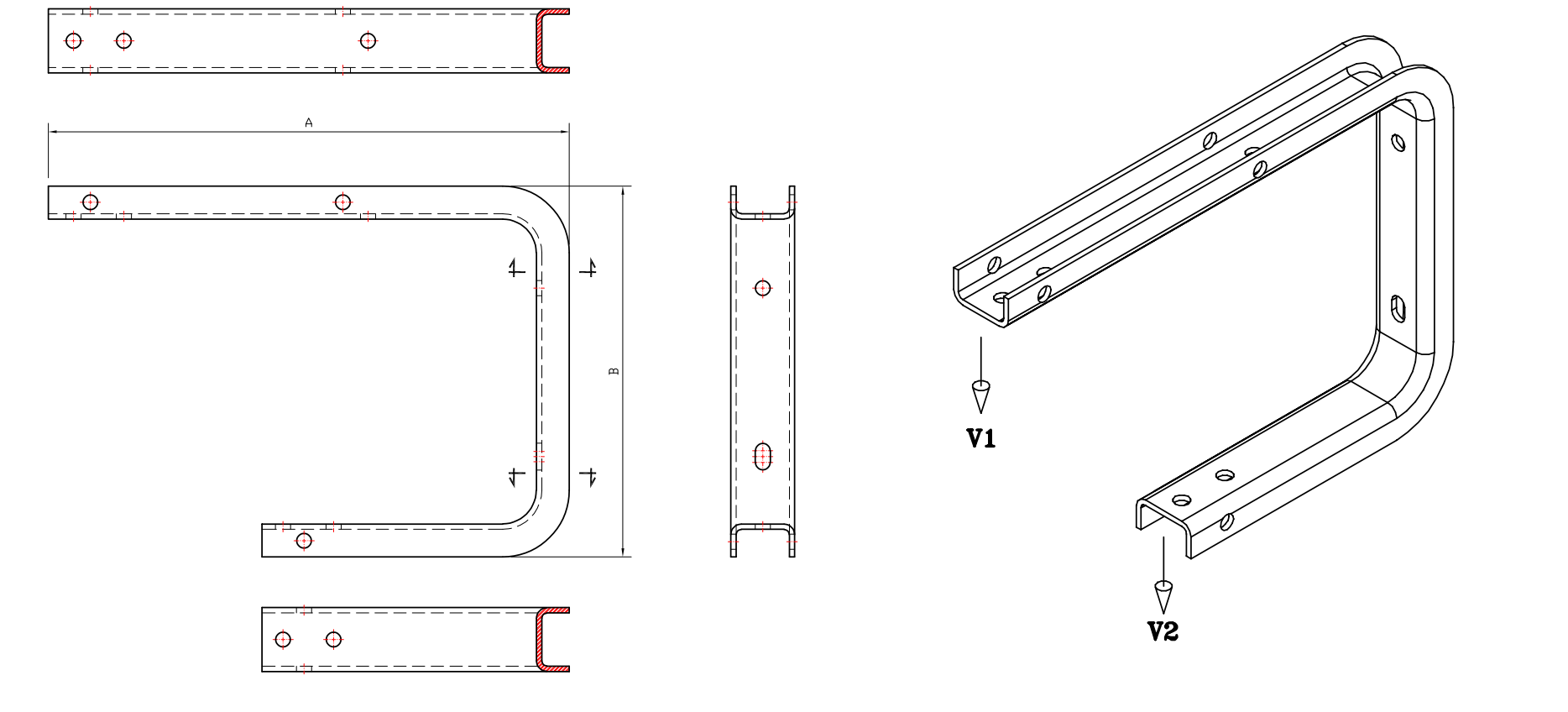

AerialGuard® Angle Bracket

APPLICATIONS
Angle brackets are designed to support the covered conductors used in the AerialGuard® spacer cable system when the circuit makes a turn. They are affixed on the utility pole to maintain the spacer cable system configuration when creating line angles from 6 degrees to 90 degrees. The brackets accommodate the full range of AerialGuard® polymer insulators.

CONSTRUCTION
Carbon steel SAE 1010 to 1020 laminated. Hot-dip galvanized (ASTM A-153). The material used follows the SAE (Society of Automotive Engineers) standards, which are widely applied in the automotive, aerospace, and mobility industries.

FEATURES & BENEFITS

• Cost-effective alternative to crossarm transitions.
• Pre-drilled holes for insulators and standard 8” pre-drilled pole attachment.
• Pole mounting is achieved using either 5/8” or ¾” through bolts or double arming bolts (not included).
• Accepts Insulator plate when required on larger conductors or 61 to 90degree angles.
• Predrilled ground lug mounting hole.
• AerialGuard® brackets are interchangeable with other manufacturer's spacer cable systems.

UPDATED jUNE 6, 2025

AerialGuard® Anti-Sway Bracket

APPLICATIONS
Anti-sway brackets are designed to stabilize 15 kV, 25 kV or 35 kV AerialGuard® spacers that are installed on a tangent bracket. The anti-sway bracket can be used with any one of our AerialGuard® spacers and is mounted on the front of the pole directly under the tangent bracket.

CONSTRUCTION
The anti-sway bracket is molded with high density UV protected polyethylene.

FEATURES & BENEFITS

• Minimizes swinging movement of the cable system.
• Electrical tracking resistant.
• Eliminates issues from transformer leads flexing.
• UV protected and weather conditions resistant.
• Pole mounting is achieved using 1/2" lag bolt.
• Tangent bracket stirrup is required when using the anti-sway bracket.

NOTES
Lbf is pound-force unit of measurement.

UPDATED JUNE 6, 2025

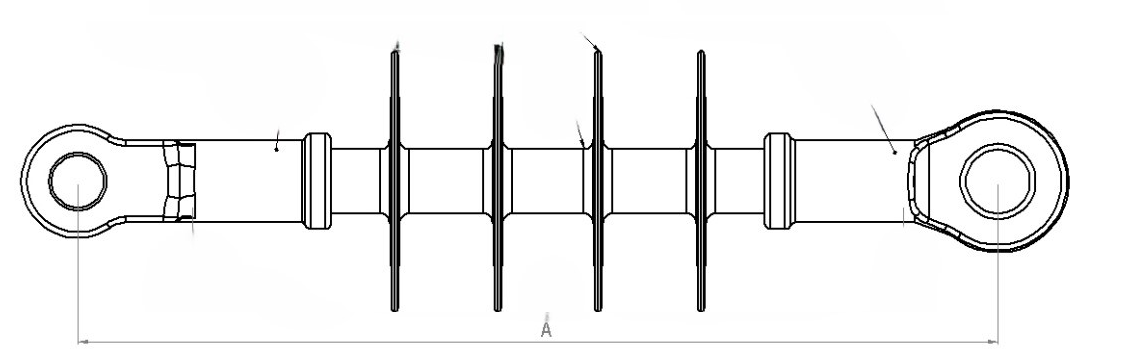

AerialGuard® Dead-End Insulator


APPLICATIONS
Dead-end insulators are designed for use on tree wire or spacer cable systems rated 15 kV, 25 kV or 35 kV. Polymer dead-end insulators are used to electrically isolate the phase conductors from ground when attaching the cables to a dead-end bracket or crossarm. The shackle clevis allows attachment of the dead-end insulators to a dead-end bracket orconductor dead-end grips.

CONSTRUCTION
Dead-end insulators are comprised of a composite epoxy resin core with a gray silicone rubber sheath and watersheds. End fittings clevis/tongue and socket/ball terminals are finished with hot dip galvanized.

FEATURES & BENEFITS

• Lightweight and easy installation.
• Tracking resistance.
• UV resistance.
• Corona resistance.
• Effective in reducing leakage currents.
• Unbreakable and vandal-resistant.
• Weather-tough performance.

Item Number	System Voltage  (kV)	Dimensions A (in)	Material	Tensile Strength (lbf)	Leakage Distance (in)	Arc Distance (in)	Flashover at Industrial Frequency under Rain (kV)	Flashover at Atmospheric Impulse (kV)
DEI-15	15	15.75	Silicone	15736	15.36	7.88	65	140
DEI-25	25	17.72	Silicone	15736	24.02	11.82	100	190
DEI-35	35	24.80	Silicone	15736	32.29	14.97	130	250

NOTES
1. Lbf is pound-force unit of measurement.




UPDATE JUNE 6,2025

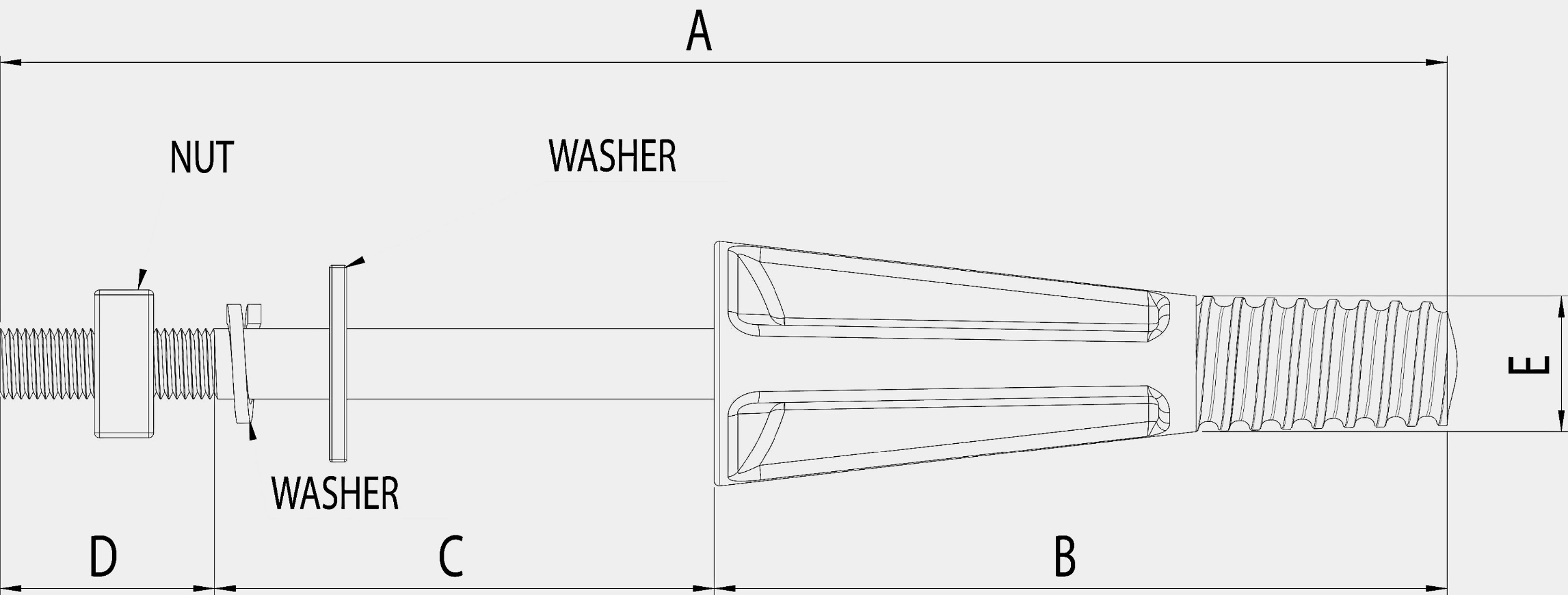

AerialGuard® Insulator Pin

APPLICATIONS
These insulator pins are used with AerialGuard® polymer pin insulators to mount the insulators in either a tree wire or spacer system. They come in short shank for mounting on steel brackets and long shank for mounting on standard crossarms.

CONSTRUCTION
The pins are made from polymeric material compatible with the polymeric insulators. The 15 kV pins have ANSI standard 1.0" thread. The 25 kV and 35 kV pins have ANSI standard 1-3/8" thread.

FEATURES & BENEFITS

• Completely polymeric pin provides extended leakage distance over a steel pin.
• Available in gray or black.
• Available in short or long shank (for either bracket or crossarm attachment).
• Electrical tracking resistant.
• UV protected and weather conditions resistant.
• Mechanical resistance to bending and compression.
• Available in two thread sizes.



NOTES
Lbf is pound-force unit of measurement.



UPDATED JUNE 6, 2025

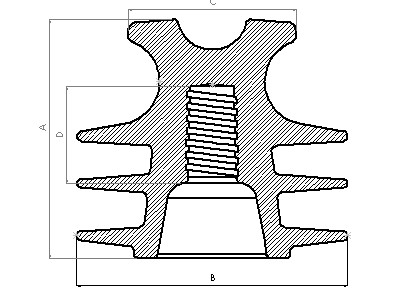

AerialGuard® Pin Insulator - Polymeric (Ratchet Top)

APPLICATIONS
Polymeric pin insulators (ratchet top) are rated for use in 15 kV, 25 kV or35 kV distribution systems. They are used for any application that calls for polymer or porcelain pin insulators to mount either covered conductors or bare conductors, where an insulator is required to isolate phase conductors that are not fully insulated. An insulator pin is used to attach insulators to either steel brackets or standard crossarms in spacer or tree wire systems. Insulated tie wire is used to fasten the conductors to the insulators. More durable than traditional porcelain insulators against vandalism and impact. The ratchet top insulator eliminates the use of tie wire to attach the conductor by using the range taking adjustable ratchet to secure the conductor.

CONSTRUCTION
Manufactured of track resistant high density gray polyethylene. The insulators are designed to ANSI thread and neck sizes. The 15 kV insulators have ANSI standard 1.0" thread. The 25 kV and 35 kV insulators available with either ANSI standard 1.0" thread or ANSI standard 1-3/8" thread.

FEATURES AND BENEFITS

• Designed to ANSI C29 electrical and mechanical requirement.
• Ratchet accepts conductor diameters from 0.47" to 0.87"
• Reduction in installation time over tie-wire installations.
• Highly resistant to shock and impact.
• UV protected and weather conditions resistant.
• Superior moisture and contamination shedding.
• Made from recyclable plastic.
• AerialGuard® insulators are interchangeable with other manufacturer's spacer cable systems.

NOTES
1. Lbf is pound-force unit of measurement.

AerialGuard® Pin Insulator - Polymeric (Tie-Top)



APPLICATIONS
Polymeric pin insulators - tie-top are rated for use in 15 kV, 25 kV or 35 kV distribution systems. They are used for any application that calls for polymer or porcelain pin insulators to mount either covered conductors or bare conductors, where an insulator is required to isolate phase conductors that are not fully insulated. An insulator pin is used to attach insulators to either steel brackets or standard crossarms in tree wire or spacer systems. Insulated tie wire is used to fasten the conductors to the insulators. More durable than traditional porcelain insulators against vandalism and impact.

CONSTRUCTION
Manufactured of track resistant high density gray polyethylene. The insulators are designed to ANSI thread and neck sizes. The 15 kV insulators have ANSI standard 1.0" thread. The 25 kV and 35 V insulators available with either ANSI standard 1.0" thread or ANSI standard 1-3/8"thread.

FEATURES & BENEFITS

• Designed to ANSI C29 electrical and mechanical requirement.
• Highly resistant to shock and impact.
• UV protected and weather conditions resistant.
• Superior moisture and contamination shedding.
• Made from recyclable plastic.stemVoltage(

NOTES
1.  Lbf is pound-force unit of measurement.

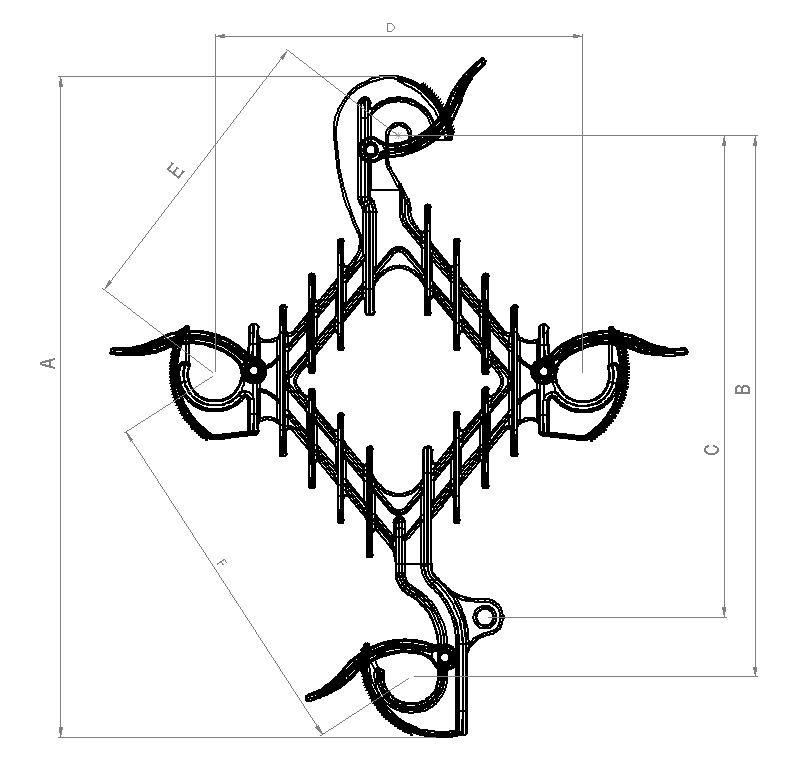

AerialGuard® Spacer Ratchet

APPLICATIONS
These polymeric spacers are used in a spacer cable system to secure the insulated phase conductors under a messenger in a compact triangular configuration. The much stronger and non-energized messenger protects the phase conductors from faults caused by direct contact from trees or branches. Spacers should be installed at the recommended 30 foot intervals.

CONSTRUCTION
Manufactured in high density polyethylene in the color gray with high resistance to tensile,impact and torsion.

FEATURES & BENEFITS

• Effortless installation and removal utilizing built-in rachet clamps for conductors and messenger, no tie wire or ring ties required.
• Can be installed with hot-line tools.
• Clamp design accommodates full range of conductor and messenger sizes.
• Spacer design provides a hole for installation of the anti-sway bracket (if required).
• Extended leakage distance resists flashovers and electrical tracking
• Ideal dielectric compatibility with AerialGuard® spacer cables.
• Close phase spacing allows smaller circuit profile and multiple circuits on same poles.
• Excellent weathering characteristics - UV protected.
• High short circuit strength.
• Resistant to shock/impact/rifle fire.
• AerialGuard® spacers are interchangeable with other manufacturer's spacer cable systems.

NOTES
1.  Lbf is pound-force unit of measurement.

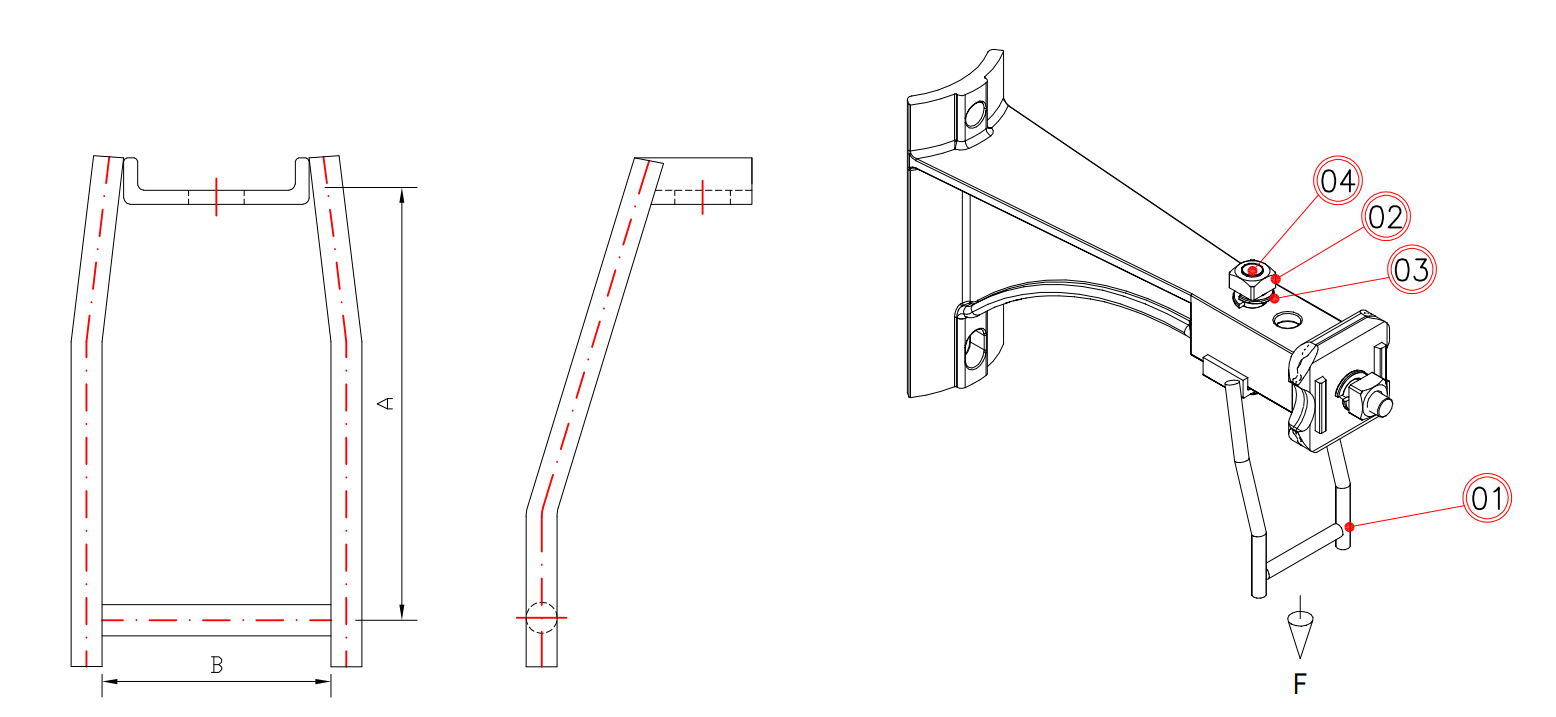

AerialGuard® Tangent Bracket Stirrup


APPLICATIONS
The ST-001 stirrup is installed directly under the end of the tangent bracket to support any of the AerialGuard® spacers. The stirrup should be bolted to the underside of the tangent bracket using the pre-drilled holeclosest to the end of the bracket.

CONSTRUCTION
Carbon steel SAE 1010 to 1020 or modular cast iron - ABNT NBR 8650 -ABNT NBR 6916 - ABNT NBR 6593.Hot-dip galvanized (ASTM-153). The material used follows the SAE (Society of Automotive Engineers) standards, which are widely applied in the automotive, aerospace, and mobility industries.

FEATURES & BENEFITS

• Provides the point of attachment for the spacer.
• When using the "roll-by" installation method, the stirrup should be attached when the spacer is installed.
• Attachment bolt is provided.

UPDATED 6/2025

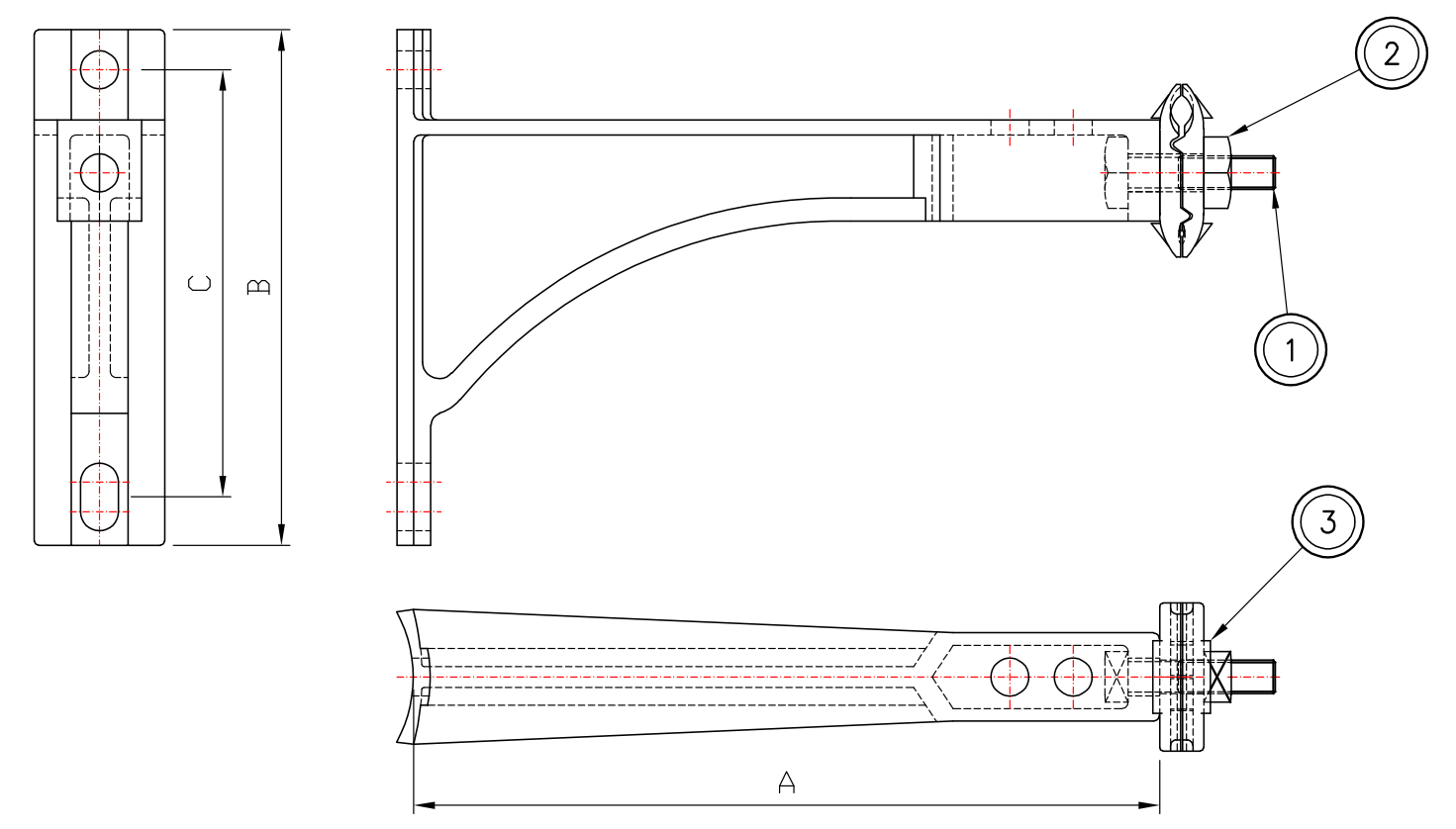

AerialGuard® Tangent Bracket

APPLICATIONS
The tangent bracket is used in the AerialGuard® spacer cable system and is used on tangent poles to support the messenger and the spacer on the pole. It is used on poles with straight circuits and small angles up to 6degrees. The bracket is supplied with the messenger clamp to secure the messenger and the stirrup to connect the spacer below.

CONSTRUCTION
Ductile cast iron and is hot-dip galvanized in accordance with ASTM A153

FEATURES & BENEFITS

• Pole mounting is accomplished using either 3/4" or 5/8" thru-bolts (not included).
• Designed to allow roll by installation equipment to pass by the bracket during stringing.
• Pre-drilled hole to accept short shank insulator pin for mounting insulators.
• Tangent brackets can be installed "back-to-back" for double circuit applications.
• Bracket include the messenger clamp that accommodates messengers from5/16" to 3/4".
• AerialGuard® brackets are interchangeable with other manufacturer's spacer cable systems.

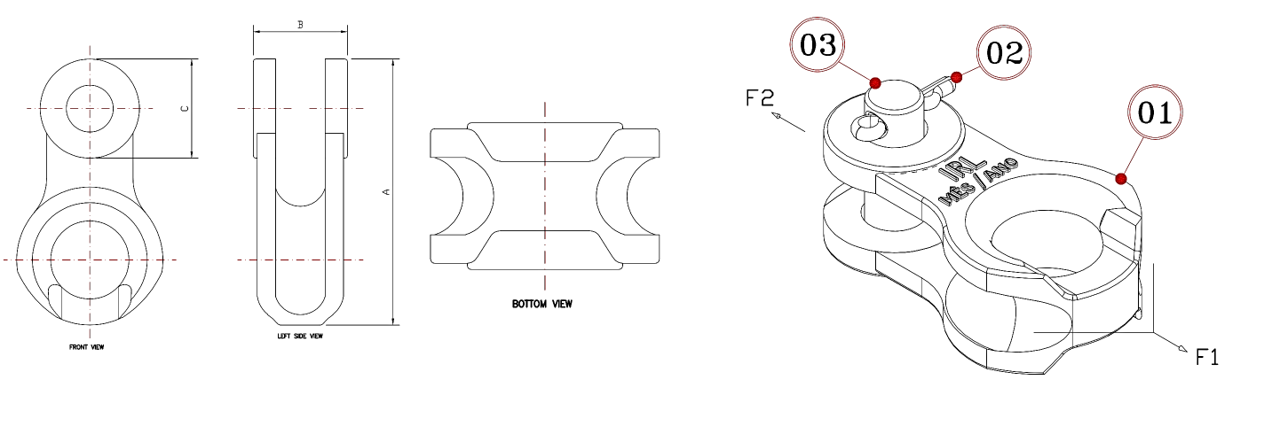

AerialGuard® Thimble Clevis

APPLICATIONS
A thimble clevis is used as the connector when dead-ending the cable. The thimble clevis provides a smooth contoured surface to connect the looped end of the dead-end grip to a dead-end insulator or bracket.

CONSTRUCTION
Cast steel, hot dip galvanized in accordance to ASTM A-513.Supplied with bolt and cotter pin.

FEATURES & BENEFITS

• Provides a smooth contoured channel surface for the dead-end grip connection.
• Eliminates stress concentration damage to the loop end of the dead-end grip.
• Allows replacement of dead-end insulator without removal of the dead-end grip.





  Item Number	Mfg Item Number	DIMENSIONS			Weight(lb)	Load(lb)
  		A	B	C
  		(in)	(in)	(in)
  TC-01	402.233	4.33	1.34	1.46	1021	11240
